SDT4E425-4F-MB-AGQ-PV1-EAU

Name: SDT4E425-4F-MB-AGQ-PV1-EAU
Brand: Dahua
SKU: SDT4E425-4F-MB-AGQ-PV1-EAU
Price: 8900.00 KES
Availability: InStock

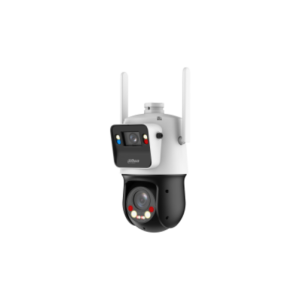

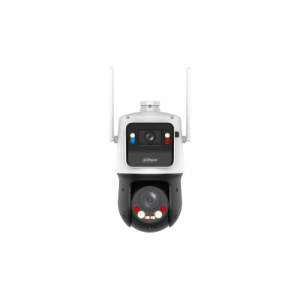

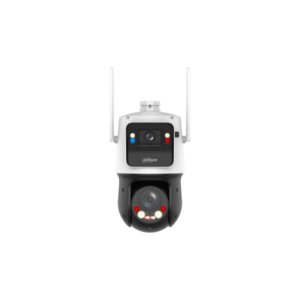

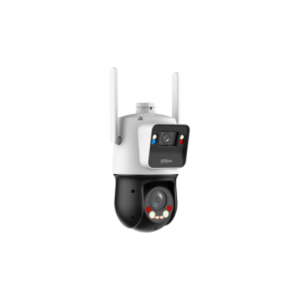

4+4MP 25x 4G AOV TiOC Network PTZ Camera

Key Points

Captures a Large Area and Great Details at the Same Time
1/1.8″ CMOS Sensor and F1.0 Large Aperture of Panorama Ensures Premium Images
High-Quality Imaging with 4MP Resolution for Overview Channel, 4MP for PTZ Channel
AOV Mode (Panorama): Event-triggered Wake-up for Low-power Continuous Recording
WizTracking：Effective Target Monitoring with Detailed Intruder Trajectories
Xinghan Large-Scale AI Models: Comprehensive Enhancement of Target Detection, Imaging
Built-in Dual Mic & Speaker: Secure Real-Time Talk
ANPR: License Plate and Vehicle Attribute Capture for Automated Responses
Active Deterrence: Audible and Visual Alarms Can Be Triggered by Certain Events to Drive Away the Target
IP67 & TVS 6000V Protection with Lightning/Surge/Voltage Transient Resistance

SKU: SDT4E425-4F-MB-AGQ-PV1-EAU

Ultimate Technology Hub

Powerqo Solutions Shopping

Computers, Laptops, CCTv Camera, Printers, Electricals & Electronics Shop, Fiber Optic Accessories, Networking Toools & Equipments, Phone Accessories, Sales and Services

Call Now

Original price was: KSh 9,000.00.Current price is: KSh 8,900.00.

Compare

Add to wishlist

10 People watching this product now!

Pick up from the Powerqo Solutions

To pick up today

Free

Courier delivery in Kenya

Our courier will deliver to the specified address

2-3 Days

Free

Free Delivery Within Embu Town

DHL courier will deliver to the specified address

1-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Camera

Image Sensor	Overview channel: 1/1.8″ CMOS Detail channel: 1/2.8″ CMOS
Pixel	Overview channel: 4 MP Detail channel: 4 MP
Max. Resolution	Overview channel: 2560 (H) × 1440 (V) Detail channel: 2560 (H) × 1440 (V)
Electronic Shutter Speed	Auto/Manual 1 s–1/100,000 s
Scanning System	Progressive
Min. Illumination	Overview channel: 0.001 lux@F1.0 (Color) Detail channel: 0.005 lux@F1.6 (Color) 0.0005 lux@F1.6 (B/W) 0 lux (IR on)
Illumination Distance	Overview channel: 30 m (98.43 ft) (Warm light) Detail channel: 100 m (328.08 ft) (IR); 100 m (328.08 ft) (Warm light)
Illuminator On/Off Control	Overview channel: Manual; Auto; Off Detail channel: Zoom Priority; Manual; Auto; Off
Illuminator Number	Overview channel: 2 (Warm light) Detail channel: 2 (Warm light) 2 (IR light) 2 (Dual light fusion)

Lens

Focal Length

Overview channel: 4 mm

Detail channel: 5 mm–125 mm

Max. Aperture

Overview channel: F1.0

Detail channel: F1.6

Field of View

Overview channel: H: 95°; V: 52.5°; D: 116°

Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Optical Zoom

Detail channel: 25×

Focus Control

Auto; Semi-auto; Manual

Close Focus Distance

Overview channel: 2.5 m (8.20 ft)

Detail channel: 0.5 m–5 m (1.64 ft–16.40 ft)

Iris Control

Detail channel: Auto; Manual; Iris Priority

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Overview channel:

181.10 ft

21.8 m

( 71.52 ft)

11.0 m

( 36.09 ft)

5.5 m

( 18.04 ft)

Detail channel:

96 m

( 314.96 ft)

37.9 m

( 124.34 ft)

19.2 m

( 62.99)

9.6 m

( 31.50 ft)

2400 m

( 7,874.02 ft)

948 m

( 3,110.24 ft)

480 m

( 1,574.80 ft)

240 m

( 787.40 ft)

*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range	Overview channel: Pan: 0°; Tilt: 12° to 24° (Manually) Detail channel: Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°
Manual Control Speed	Pan: 0.1°/s–80°/s; Tilt: 0.1°/s–80°/s
Preset Speed	Pan: 80°/s; Tilt: 80°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset;Pattern;Tour;Scan

Intelligence

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human), loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm.
Face Detection	Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Smart Tracking	Linkage Tracking; Relay Tracking; WizTracking
SMD	SMD 4.0
Auto Patrol	After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time.

Active Deterrence

Light Warning

Red and blue light warning

Flash duration: 5 s–180 s

Flash frequency: high, medium, low

Sound Warning

Offers 11 sound alarms and supports importing 10 custom sound alarms

Sound: 0–100

Play times can be set from 1 to 10

Video

Video Compression	Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability	3 streams
Resolution	Overview channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Overview channel: Main stream: 4M (2560 × 1440)/3M (2304 × 1296)/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) Detail channel: Main stream: 4M (2560 × 1440)/3M (2304 × 1296)/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	H264: 64 kbps–10496 kbps H265: 25 kbps–6400 kbps
Day/Night	Overview channel: Color/B/W Detail channel: Auto (ICR)/Color/B/W
BLC	Yes
WDR	Overview channel: 150 dB Detail channel: 120 dB
HLC	Yes
White Balance	Overview channel:Auto; outdoor; manual; regional custom; natural light; street lamp Detail channel:Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control	Auto; manual; gain priority
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Defog	Overview channel: Electronic Detail channel: Electronic
Digital Zoom	16×
Image Rotation	180°
Privacy Masking	Up to 32 areas can be set, with up to 8 areas in the same view; multiple colors and mosaics are available
S/N Ratio	≥55 dB

Audio

Audio Compression	PCM; G.711A; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker

Network

Network Port	RJ-45 (10/100 Base-T)
Carrier Network System	4G: FDD-LTE: B1/B3/B7/B8/B20/B28 (CAT4 max 150 Mbps (DL)/max 50 Mbps (UL)) TDD-LTE: B38/B40/B41 (CAT4 max 130 Mbps (DL)/max 30.5 Mbps (UL)) Application regions: EU countries
Wireless Carrier Frequency Band	4G: FDD-LTE: B1/B3/B7/B8/B20/B28; TDD-LTE:B38/B40/B41; 3G: WCDMA: B1/B8 (2100/900MHz); 2G: CDMA: BC0 (800MHz); GSM: B3/B8 (1800/900MHz)
Max. Transmission Power	≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz ≤23 dBm@5250–5350 MHz; ≤33 dBm@5725–5850 MHz
Network Protocol	HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS
Interoperability	CGI;SDK;P2P
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage	Micro SD card (up to 1 TB); FTP/SFTP; NAS
Browser	Web5.0: IE9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions
Management Software	DMSS;DSS Pro
Mobile Client	iOS;Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

CE-RED: Radio Equipment Directive 2014/53/EU

Port

Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)）
Alarm Input	2 (digital input: 0–5 VDC)
Alarm Output	1 channel
Alarm Linkage	Capture; recording; send email; preset; tour; pattern; warning light; alarm digital output; audio; wake
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; external alarm; crossing fence; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; crowd detection; parking detection; face detection; face recognition; ANPR; SMD

Power

Power Supply

12 VDC; 4 A (–10% to +25%)

Power Consumption

AOV mode (AI ISP off): 1.0 W

AOV mode (AI ISP on, light off): 1.3 W

AOV mode (AI ISP on, light on): 2.0 W

Power saving mode: 0.6 W

Performance mode (without 4G streaming; AI ISP off): 7.9 W

Performance mode (without 4G streaming; AI ISP on): 10.5 W

Performance mode (4G streaming; 1080p; AI ISP off): 8.5 W

Performance mode (4G streaming; 1080p; AI ISP on): 11.0 W

Max (AI ISP + illuminator + heating + PTZ + 4G streaming on): 32 W

Power Adapter

Optional

Environment

Operating Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity	≤95%
Protection	IP67
Anti-corrosion Level	Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Product Dimensions	181.42 mm × 159.93 mm × 301.60 mm (7.14″ × 6.30″ × 11.87″) (L × W × H)
Net Weight	3.4 kg (7.50 lb)
Gross Weight	4.88 kg (10.76 lb)
